SDI-003 Datasheet - Faraday Technology

SDI-003 SERIAL D1 TO CVBS/YC MODULE

www.DataSheet4U.com SDI-003 SERIAL D1 TO CVBS/YC MODULE + + + Small compact design for pcb mounting Fully filtered and buffered outputs Three CVBS outputs or CVBS + Y/C output + + Auto 625/525 operation Reclocked outputs available This interface card accepts D1 serial digits and provides three analogue Composite video outputs with colour bursts and mixed sync’s to allow picture display on a Composite video monitor. An interface card with Y/C output (S-Video) and 1 CVBS output only is available.

SDI-003_FaradayTechnology.pdf

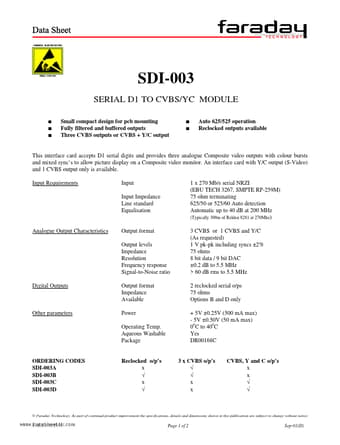

Preview of SDI-003 PDF
SDI-003 Datasheet Preview Page 2

Datasheet Details

Part number:

SDI-003

Manufacturer:

Faraday Technology

File Size:

98.01 KB

Description:

Serial d1 to cvbs/yc module.
