FS3144 Datasheet, Latch, Feeling Technology

FS3144 Features

  • Latch Wide operating voltage range: 3.0V to 28V Maximum output sink current 50mA Open-Collector pre-driver Power reverse polarity protection Available in SIP-3L package Halogen Free General

PDF File Details

Part number:

FS3144

Manufacturer:

Feeling Technology

File Size:

96.92kb

Download:

📄 Datasheet

Description:

Single hall effect latch. The FS3144 is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications. The d

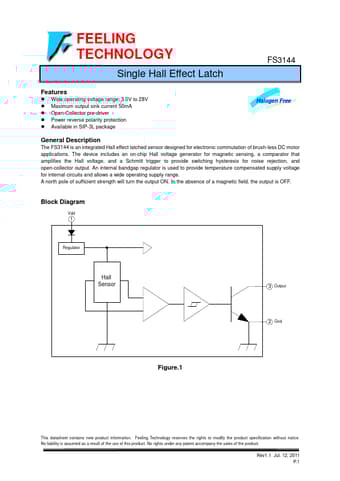

Datasheet Preview: FS3144 📥 Download PDF (96.92kb)
Page 2 of FS3144 Page 3 of FS3144

FS3144 Application

  • Applications The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmit

TAGS

FS3144
Single
Hall
Effect
Latch
Feeling Technology
