CBP1256 Datasheet - Filtran LTD

CBP1256 Chokes Drum Core Inductor

Chokes www.DataSheet4U.com Drum Core Inductor CBP1256 The CBP1256 series Inductors are wound on “Drum” style ferrite cores and are ideal for use as Input/Output filter Inductors in Switch Mode Power Supplies. High DC levels. Compact size. Low loss Ferrite material. Cost effective. Available with heat shrink vinyl cover. Other applications include: Line Filters, Speaker Crossover Networks, SCR and Triac Controls etc. MECHANICAL Dime.

CBP1256_FiltranLTD.pdf

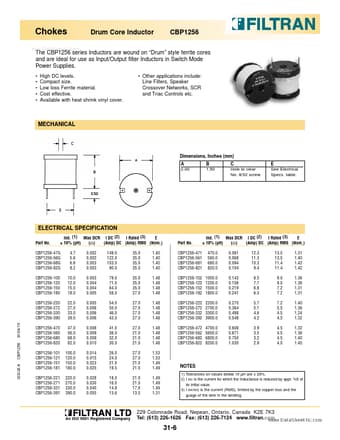

Preview of CBP1256 PDF

Datasheet Details

Part number:

CBP1256

Manufacturer:

Filtran LTD

File Size:

78.75 KB

Description:

Chokes drum core inductor.
