CBP-11N-1250, CBP-xxN-xxx Datasheet - Merrimac

CBP-11N-1250 WIDEBAND DIRECTIONAL COUPLER

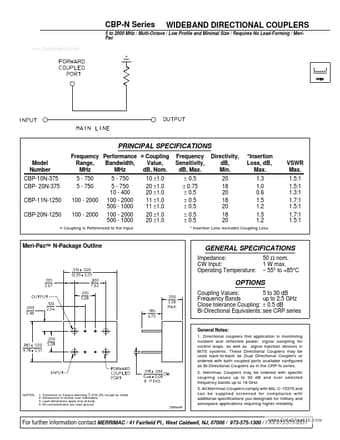

www.DataSheet4U.com CBP-N Series WIDEBAND DIRECTIONAL COUPLERS 5 to 2000 MHz / Multi-Octave / Low Profile and Minimal Size / Requires No Lead-Forming / MeriPac PRINCIPAL SPECIFICATIONS Model Number Frequency Performance ¤ Coupling Range, Bandwidth, Value, MHz MHz dB, Nom. CBP-10N-375 5 - 750 5 - 750 10 ±1.0 CBP- 20N-375 5 - 750 5 - 750 10 - 400 20 ±1.0 20 ±1.0 CBP-11N-1250 100 - 2000 100 - 2000 500 - 1000 11 ±1.0 11 ±1.0 CBP-20N-1250 100 - 2000 100 - 2000 500 - 1000 20 ±1.0 2.

CBP-xxN-xxx_MerrimacIndustries.pdf

This datasheet PDF includes multiple part numbers: CBP-11N-1250, CBP-xxN-xxx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CBP-11N-1250, CBP-xxN-xxx

Manufacturer:

Merrimac

File Size:

60.69 KB

Description:

Wideband directional coupler.

Note:

This datasheet PDF includes multiple part numbers: CBP-11N-1250, CBP-xxN-xxx.
Please refer to the document for exact specifications by model.
