FP100 - HIGH PERFORMANCE PHEMT

Description

AND APPLICATIONS DIE SIZE: 16.5 x 16.5 mils (420 x 420 µm) DIE THICKNESS: 3.9 mils (100 µm typ.) BONDING PADS: 3.3 x 3.5 mils (85 x 90 µm typ.) The FP100 is an Aluminum Gallium Arsenide / Indium Gallium Arsenide (AlGaAs/InGaAs) Pseudomorphic High Electron Mobility Transistor (PHEMT), utilizing an

Features

  • S.
  • 14 dBm P-1dB at 12 GHz.
  • 9 dB Power Gain at 12 GHz.
  • 3.0 dB Noise Figure at 12 GHz.

📥 Download Datasheet

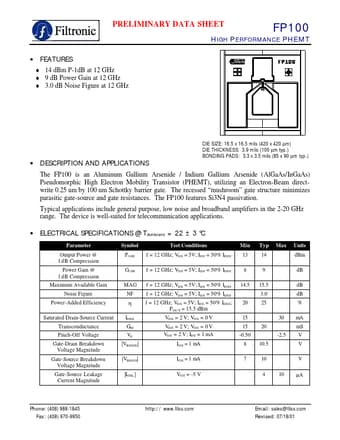

Datasheet preview – FP100
