2W005 Glass Passivated Single-Phase Bridge Rectifier

First Silicon

Description

SEMICONDUCTOR TECHNICAL DATA 2W005~10 Glass Passivated Single-Phase Bridge Rectifier Reverse Voltage 50 to 1000Volts , Forward Current 2.0 Amperes F.

📥 Download Datasheet

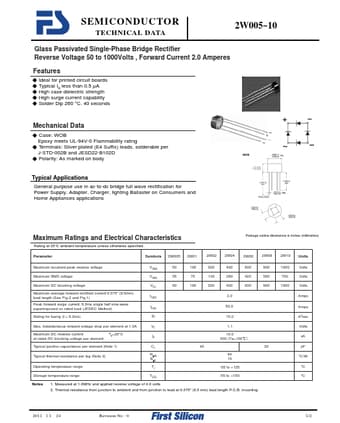

2W005 Datasheet Preview — Preview of 2W005 PDF

Datasheet Specifications

Part number: 2W005
Manufacturer: First Silicon
File Size: 214.76 KB
Datasheet: 2W005-FirstSilicon.pdf
Description: Glass Passivated Single-Phase Bridge Rectifier

Features

* Ideal for printed circuit boards Typical IR less than 0.5 µA High case dielectric strength High surge current capability Solder Dip 260 °C, 40 seconds Mechanical Data Case: WOB Epoxy meets UL-94V-0 Flammability rating Terminals: Silver plated (E4 Suffix) leads, solderable per J-STD-002B and JESD22-

Applications

* General purpose use in ac-to-dc bridge full wave rectification for Power Supply, Adapter, Charger, lighting Ballaster on Consumers and Home Appliances applications Maximum Ratings and Electrical Characteristics Rating at 25oC ambient temperature unless otherwise specified. Parameter Symbols 2W005
