2W005GN Datasheet, Rectifier, MEI SEMI

2W005GN Features

• Rectifier
• Glass Passivated Chip Junction
• Low Forward Voltage Drop
• High Current Capability
• This Series is UL Recognized Under Component Index, File   N

PDF File Details

Part number:

2W005GN

Manufacturer:

MEI SEMI

File Size:

161.97kb

Download:

📄 Datasheet

Description:

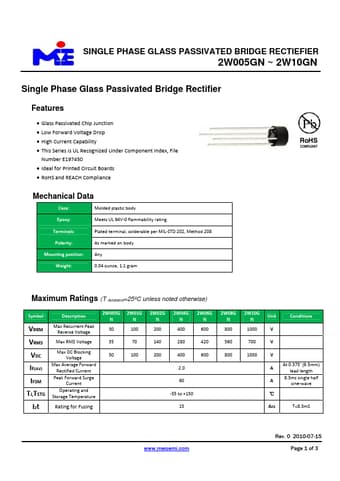

Single phase glass passivated bridge rectifier. Max Recurrent Peak  Reverse Voltage  2W005G N  50  VRMS  Max RMS Voltage  35  VDC  IF(AV)  IFSM  TJ,TSTG  Max DC Blocking  Volt
