2W04GN

Single Phase Glass Passivated Bridge Rectifier

2W04GN Features

* Glass Passivated Chip Junction

* Low Forward Voltage Drop

* High Current Capability

* This Series is UL Recognized Under Component Index, File   Number E197450

* Ideal for Printed Circuit Boards

* RoHS and REACH Compliance     Mechanical Data

2W04GN General Description

Max Recurrent Peak  Reverse Voltage  2W005G N  50  VRMS  Max RMS Voltage  35  VDC  IF(AV)  IFSM  TJ,TSTG  Max DC Blocking  Voltage  Max Average Forward  Rectified Current   Peak.

2W04GN Datasheet (161.97 KB)

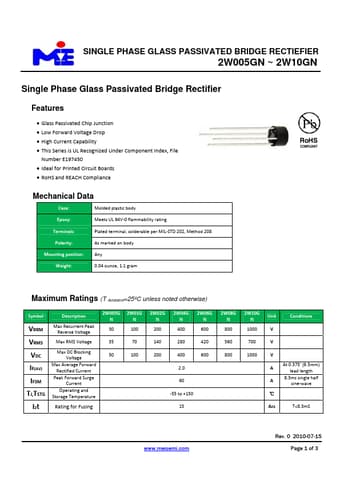

Preview of 2W04GN PDF

Datasheet Details

Part number:

2W04GN

Manufacturer:

MEI SEMI

File Size:

161.97 KB

Description:

Single phase glass passivated bridge rectifier.
