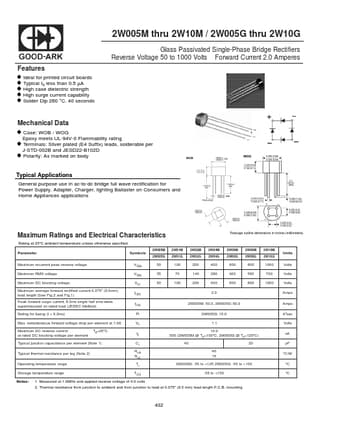

2W04M Datasheet, Rectifiers, GOOD-ARK

2W04M Features

• Rectifiers Ideal for printed circuit boards Typical IR less than 0.5 µA High case dielectric strength High surge current capability Solder Dip 260 °C, 40 seconds 2W005M thru 2W10M / 2W005G thru 2

PDF File Details

Part number:

2W04M

Manufacturer:

GOOD-ARK

File Size:

162.09kb

Download:

📄 Datasheet

Description:

Glass passivated single-phase bridge rectifiers.

2W04M Application

• Applications General purpose use in ac-to-dc bridge full wave rectification for Power Supply, Adapter, Charger, lighting Ballaster on Consumers and
