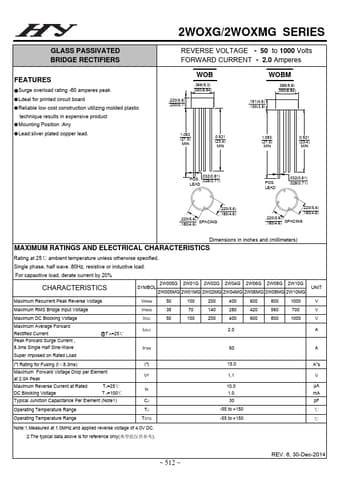

Part number:
2W04MG
Manufacturer:
HY
File Size:
98.76 KB
Description:
Glass passivated bridge rectifiers.
* Surge overload rating -60 amperes peak
* Ldeal for printed circuit board
* Reliable low cost construction utilizing molded plastic technique results in expensive product
* Mounting Position :Any
* Lead:sliver plated copper lead. 2WOXG/2WOXMG SERIES REVERSE VOLTAGE - 50 to 1000 Vol
2W04MG
HY
98.76 KB
Glass passivated bridge rectifiers.
