GBJ1502, GBJ15005, Bridge Rectifier

SEMICONDUCTOR TECHNICAL DATA GBJ15005 ~ GBJ1510 Bridge Rectifier * .

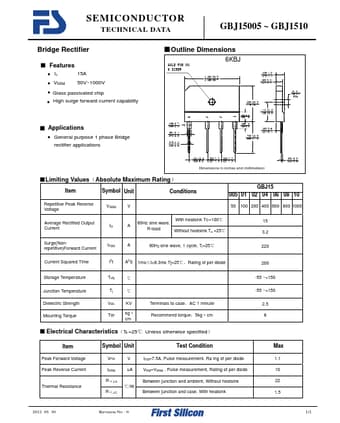

datasheet Preview Page 1 from Datasheet4u.com

GBJ15005-FirstSilicon.pdf

GBJ1502 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJ1502, GBJ15005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBJ1502, GBJ15005

Manufacturer:

First Silicon

File Size:

109.70 KB

Description:

Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: GBJ1502, GBJ15005.
Please refer to the document for exact specifications by model.

Features

* Io 15A
* VRRM 50V~1000V
* Glass passivated chip
* High surge forward current capability

Applications

* General purpose 1 phase Bridge rectifier applications
* Outline Dimensions HOLE FOR NO. 6 SCREW 6KBJ 1.193(30.3) 1.169(29.7) .189(4.8) .173(4.4) .150(3.8) .134(3.4) .106(2.7) .096(2.3) .094(2.4) .078(2.0) 043(1 1) .035(0.9) + .800(20.3) .776(19.7) .441(11.2) ~ ~ - .228(5.8) .189 .
