GBJ15010 Features
* Glass Passivated Die Construction Low Reverse Leakage Current High Case dielectric strength 1500 VRMS Ideal for printed circuit boards Surge Overload Rating to 240A Peak MECHANICAL DATA Case: Molded Plastic Epoxy: UL94V-O rate flame retardant Terminals Plated Leads Solderable Per MIL-STD-202 Method
Datasheet Details
GBJ15010, GBJ15005
MOSPEC
74.20 KB

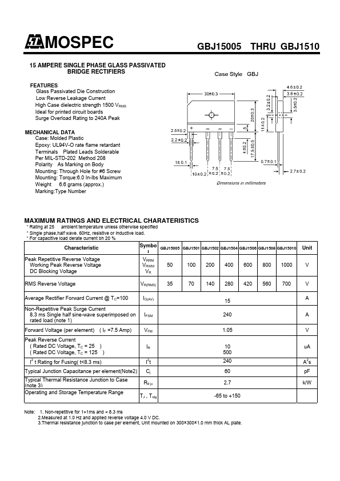

15 ampere single phase glass passivated bridge rectifiers.
This datasheet PDF includes multiple part numbers: GBJ15010, GBJ15005.
Please refer to the document for exact specifications by model.
