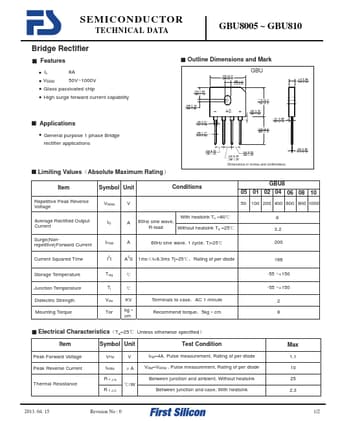

Part number:
GBU8005
Manufacturer:
First Silicon
File Size:
156.96 KB
Description:
Bridge rectifier.
* Io 8A
* VRRM 50V~1000V
* Glass passivated chip
* High surge forward current capability
* Applications
* General purpose 1 phase Bridge rectifier applications
* Limiting Values（Absolute Maximum Rating）
* Outline Dimensions and Mark .880(22.3) .860(21.8) .16
GBU8005
First Silicon
156.96 KB
Bridge rectifier.
