SL39A, SL32A Surface Mount Schottky Barrier Rectifier

SL39A Description

SEMICONDUCTOR TECHNICAL DATA SL32A ~ SL310A Surface Mount Schottky Barrier Rectifier .

SL39A Features

* Ideal for automated placement
* Low forward voltage drop
* Low leakage current
* Meets environmental standard MIL-S-19500D
* Moisture sensitivity:level 1, per J-STD-020 DO-214AC SMA
* Solder dip 275 °C, 10 s
* Compliant to RoHS Direct

SL39A Applications

* For use in general purpose rectification of lighting, power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 3A 20 V to 100 V 80A 0.42V 0.5V 0.75V 125 °C 150 °C 175 °C MECHANICAL DATA Case:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SL39A, SL32A. Please refer to the document for exact specifications by model.

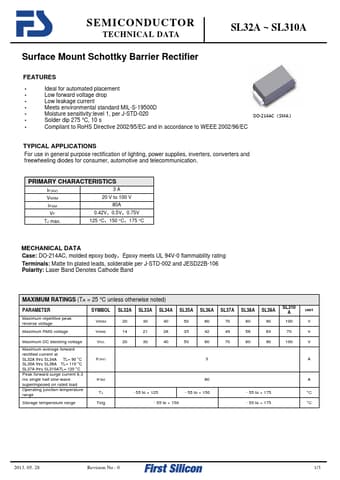

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SL39A, SL32A
Manufacturer
First Silicon
File Size
155.92 KB
Datasheet
SL32A-FirstSilicon.pdf
Description
Surface Mount Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SL39A, SL32A.
Please refer to the document for exact specifications by model.
