SL39C, SL32C-GOOD Surface Mount Schottky Rectifier

SL39C Description

SL32C thru SL310C Surface Mount Schottky Rectifier Reverse Voltage 20 -100V Forward Current 3A .

SL39C Features

* Ideal for automated placement
* Low forward voltage drop
* Low leakage current
* Meets environmental standard MIL-S-19500D
* Moisture sensitivity:level 1, per J-STD-020
* Solder dip 275 °C, 10s
* Compliant to RoHS Directive 2002/95/EC and in

SL39C Applications

* For uses in general purpose rectifications of lighting, power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 3A 20 V to 100 V 80A 0.42V 0.5V 0.75V 125 °C 150 °C 175 °C MECHANICAL DATA Cas

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SL39C, SL32C-GOOD. Please refer to the document for exact specifications by model.

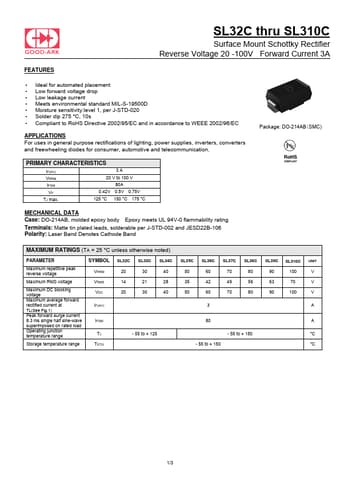

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SL39C, SL32C-GOOD
Manufacturer
GOOD-ARK
File Size
451.99 KB
Datasheet
SL32C-GOOD-ARK.pdf
Description
Surface Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SL39C, SL32C-GOOD.
Please refer to the document for exact specifications by model.
