FR9801

600KHz Synchronous Step-Down DC/DC Converter

FR9801 Features

* High Efficiency up to 94%

* Low RDS(ON) Integrated Power MOSFET

* Internal Compensation Function

* Wide Input Voltage Range: 4.5V to 21V

* Adjustable Output Voltage from 0.8V to 17.85V

* 2A Output Current

* Fixed 600KHz Switching Frequency

* Current Mode Operation

FR9801 General Description

The FR9801 is a synchronous step-down DC/DC converter that provides wide 4.5V to 21V input voltage range and 2A continuous load current capability. The FR9801 fault protection includes cycle-by-cycle current limit, UVLO, output overvoltage protection and thermal shutdown. The adjustable soft-start f.

FR9801 Datasheet (1.04 MB)

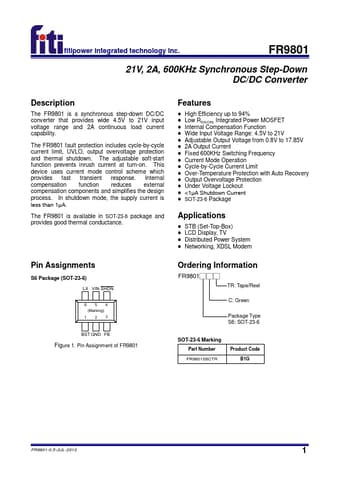

Preview of FR9801 PDF
