FR9808

500KHz Synchronous PWM-Buck DC/DC Converter

Fiti

FR9808 Features

* High Efficiency up to 90%

* Internal MOSFET RDS(ON): 120mΩ/20mΩ

* Internal Compensation

* Input Operation Voltage Range: 4.75V to 21V

* 4A Continuous Output Current

* Output Voltage down to 0.805V

* 500KHz Oscillation Frequency

* Sync to External Clock from 300 KHz

FR9808 General Description

FR9808 is a high-efficiency synchronous step-down DC/DC converter that employs a special process technique to obtain very low RDS(ON) for the internal metal

*oxide

*semiconductor field-effect transistor (MOSFET). The input operation voltage is in a wide 4.75V to 21V, and continuous loa.

FR9808 Datasheet (1.10 MB)

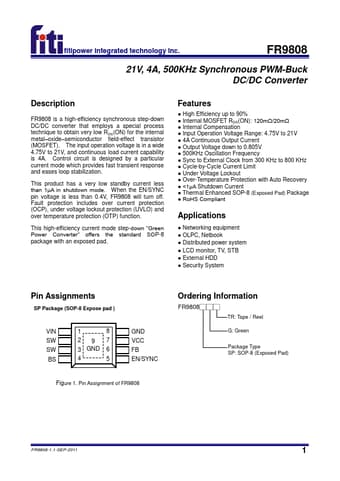

FR9808 Datasheet Preview — Preview of FR9808 PDF

Datasheet Details

Part number:

FR9808

Manufacturer:

Fiti

File Size:

1.10 MB

Description:

500khz synchronous pwm-buck dc/dc converter.
