FT5206, FT5206GE1 Datasheet - FocalTech Systems

FT5206 True Multi-Touch Capacitive Touch Panel Controller

1  2.1  ARCHITECTURAL OVERVIEW 1  2.2  MCU 2  2.3  OPERATION MODES 2  2.4  HOST INTERFACE 3  2.5  SERIAL INTERFACE 3  2.5.1  I2C 3  2.5.2  SPI 4  3  ELECTRICAL SPECIFICATIONS 8  3.1  ABSOLUTE MAXIMUM RATINGS 8  3.2  DC CHARACTERISTICS 9  3.3  AC CHARACTERISTICS 9  3.4  I/O PORTS CIRCUITS 10  .
FT5x06 True Multi-Touch Capacitive Touch Panel Controller INTRODUCTION The FT5x06 Series ICs are single-chip capacitive touch panel controller ICs with a built-in 8 bit Micro-controller unit (MCU).They adopt the mutual capacitance approach, which supports true multi-touch capability. In conjunction with a mutual capacitive touch panel, the FT5x06 have user-friendly input functions, which can be applied on many portable devices, such as cellular phones, MIDs, netbook and notebook personal comput.

FT5206 Features

* z Mutual Capacitive Sensing Techniques z True Multi-touch with up to 10 Points of Absolution X and Y Coordinates z Immune to RF Interferences z Auto-calibration: Insensitive to Capacitance and Environ- mental Variations z Supports up to 28 Transmit Lines and 16 Receive Lines z Supports up to 8.9” To

FT5206GE1-FocalTechSystems.pdf

This datasheet PDF includes multiple part numbers: FT5206, FT5206GE1. Please refer to the document for exact specifications by model.

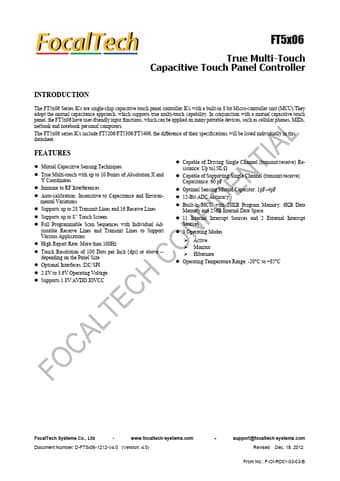

FT5206 Datasheet Preview Page 2 FT5206 Datasheet Preview Page 3

Datasheet Details

Part number:

FT5206, FT5206GE1

Manufacturer:

FocalTech Systems

File Size:

4.37 MB

Description:

True multi-touch capacitive touch panel controller.

Note:

This datasheet PDF includes multiple part numbers: FT5206, FT5206GE1.
Please refer to the document for exact specifications by model.
