FT5416DQ9 Datasheet - FocalTech

True Multi-Touch Capacitive Touch Panel Controller

FT5416DQ9 Features

* Mutual Capacitive Sensing Techniques

* 5416DQ9 Supports up to 26TX + 16 RX

* Support up to 10 fingers

* High immunity to inductive power noise

* Automatic mode switching (Active, Monitor,Sleep)

* Support >100Hz sampling rate

* Auto-calibration

* Support IIC (up to 4

FT5416DQ9 General Description

3 2.1 ARCHITECTURAL OVERVIEW 3 2.2 MCU 4 2.3 OPERATION MODES 4 2.4 HOST INTERFACE 5 2.5 SERIAL INTERFACE 5 3 ELECTRICAL SPECIFICATIONS 6 3.1 ABSOLUTE MAXIMUM RATINGS 6 3.2 DC CHARACTERISTICS 7 3.3 AC CHARACTERISTICS 7 3.4 I/OPORTSCIRCUITS 8 3.5 POWER ON/RESET SEQUENCE 8 4 PIN CONFIGURATIONS .

FT5416DQ9 Datasheet (522.75 KB)

Preview of FT5416DQ9 PDF

Datasheet Details

Part number:

FT5416DQ9

Manufacturer:

FocalTech

File Size:

522.75 KB

Description:

True multi-touch capacitive touch panel controller.

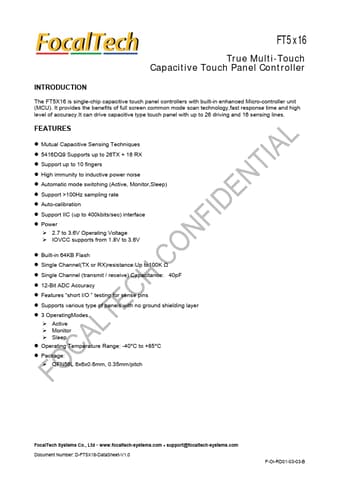

FT5x16 True Multi-Touch Capacitive Touch Panel Controller INTRODUCTION The FT5X16 is single-chip capacitive touch panel controllers with built-in enha.
