FT5406DQ9, FT5206GE1 Datasheet - FocalTech Systems

FT5406DQ9 True Multi-Touch Capacitive Touch Panel Controller

1 2.1 MCU 2 2.2 OPERATION MODES 2 2.3 HOST INTERFACE 3 2.4 SERIAL INTERFACE 3 2.4.1 I2C 3 2.4.2 SPI 4 3 ELECTRICAL SPECIFICATIONS 8 3.1 ABSOLUTE MAXIMUM RATINGS 8 3.2 DC CHARACTERISTICS 9 3.3 AC CHARACTERISTICS 9 3.4 I/OPORTSCIRCUITS 10 3.5 POWER ON/RESET/WAKE SEQUENCE 11 4 PIN CONFIGURATIONS.

FT5x06 True Multi-Touch Capacitive Touch Panel Controller INTRODUCTION The FT5x06 Series ICs are single-chip capacitive touch panel controller ICs with a built-in 8 bit Micro-controller unit (MCU).They adopt the mutual capacitance approach, which supports true multi-touch capability. In conjunction with a mutual capacitive touch panel, the FT5x06 have user-friendly input functions, which can be applied on many portable devices, such as cellular phones, MIDs, netbook and notebook personal compu.

FT5406DQ9 Features

* Mutual Capacitive Sensing Techniques

* True Multi-touch with up to 10 Points of Absolution X and Y Coordinates

* Immune to RF Interferences

* Auto-calibration: Insensitive to Capacitance and Environ- mental Variations

* Supports up to 28 Transmit Lines and 16 Receive Lines

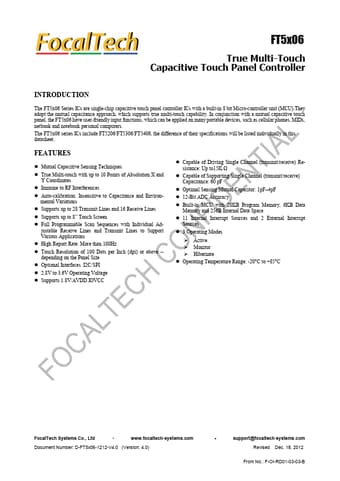

FT5206GE1-FocalTechSystems.pdf

FT5406DQ9 Datasheet Preview — This datasheet PDF includes multiple part numbers: FT5406DQ9, FT5206GE1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FT5406DQ9, FT5206GE1

Manufacturer:

FocalTech Systems

File Size:

4.37 MB

Description:

True multi-touch capacitive touch panel controller.

Note:

This datasheet PDF includes multiple part numbers: FT5406DQ9, FT5206GE1.
Please refer to the document for exact specifications by model.
