FT5406EE8, FT5206GE1 True Multi-Touch Capacitive Touch Panel Controller

FocalTech Systems

Description

FT5x06 True Multi-Touch Capacitive Touch Panel Controller INTRODUCTION The FT5x06 Series ICs are single-chip capacitive touch panel controller ICs w.
1 2.

📥 Download Datasheet

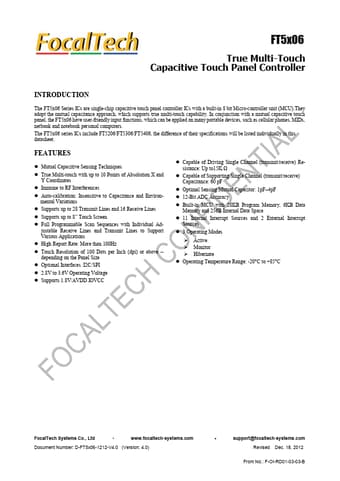

FT5406EE8 Datasheet Preview — This datasheet PDF includes multiple part numbers: FT5406EE8, FT5206GE1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FT5406EE8, FT5206GE1
Manufacturer: FocalTech Systems
File Size: 4.37 MB
Datasheet: FT5206GE1-FocalTechSystems.pdf
Description: True Multi-Touch Capacitive Touch Panel Controller
Note: This datasheet PDF includes multiple part numbers: FT5406EE8, FT5206GE1.
Please refer to the document for exact specifications by model.

Features

* Mutual Capacitive Sensing Techniques
* True Multi-touch with up to 10 Points of Absolution X and Y Coordinates
* Immune to RF Interferences
* Auto-calibration: Insensitive to Capacitance and Environ- mental Variations
* Supports up to 28 Transmit Lines and 16 Receive Lines

Applications

* High Report Rate: More than 100Hz
* Touch Resolution of 100 Dots per Inch (dpi) or above -depending on the Panel Size
* Optional Interfaces :I2C/SPI
* 2.8V to 3.6V Operating Voltage
* Supports 1.8V/AVDD IOVCC
* Capable of Driving Single Channel (transmit/receive) Resistanc
