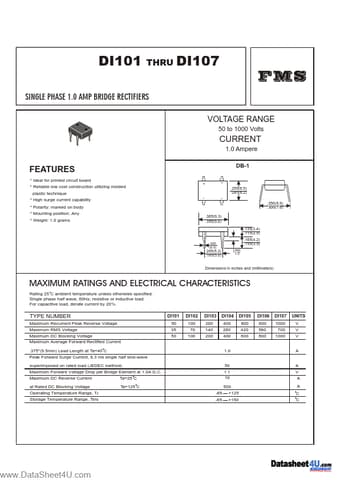

DI107, DI105 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS

Formosa MS

Datasheet Details

Part number	DI107, DI105
Manufacturer	Formosa MS
File Size	119.34 KB
Description	(DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
Datasheet	DI105_FormosaMS.pdf
Note	This datasheet PDF includes multiple part numbers: DI107, DI105. Please refer to the document for exact specifications by model.

Ideal for printed circuit board.
Reliable low cost construction utilizing molded plastic technique.
High surge current capability.
Polarity: marked on body.
Mounting position: Any.
Weight: 1.0 grams .255(6.5) .245(6.2) ~ ~ .350(8.9) .300(7.6) .365(9.3) .355(9.0) .135(3.4) .115(2.9) .020 (0.5) .165(4.2) .155(3.9) .060 1.5 .205(5.2) .195(5.0) Dimensions in inches and (millimeters).
