DI100

DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

DI100 Features

* Plastic material used carries Underwriters Laboratory recognition 94V-O

* Low leakage

* Surge overload rating

* 30 amperes peak

* Ideal for printed circuit board

* Exceeds environmental standards of MIL-S-19500/228

* Pb free product are availa

DI100 Datasheet (62.54 KB)

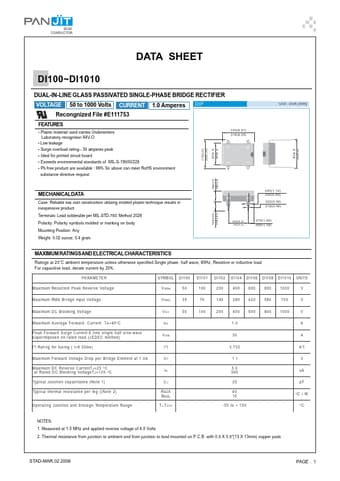

Preview of DI100 PDF

Datasheet Details

Part number:

DI100

Manufacturer:

Pan Jit International Inc.

File Size:

62.54 KB

Description:

Dual-in-line glass passivated single-phase bridge rectifier.
DATA SHEET DI100~DI1010 DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT 1.0 Amperes DIP Recongnized F.
