FM1100 - Chip Schottky Barrier Diode

FM1100 Description

Chip Schottky Barrier Diodes FM120 THRU FM1100 Silicon epitaxial planer type Formosa MS SMA 0.185(4.8) 0.177(4.4) 0.012(0.3) Typ..

FM1100 Applications

* Exceeds environmental standards of MIL-S-19500 / 228 Low leakage current. 0.067(1.7) 0.060(1.5) 0.110(2.8) 0.094(2.4) 0.165(4.2) 0.150(3.8) 0.040(1.0) Typ. 0.040 (1.0) Typ. Mechanical data Case : Molded plastic, JEDEC DO-214AC Terminals : Solder plated, solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

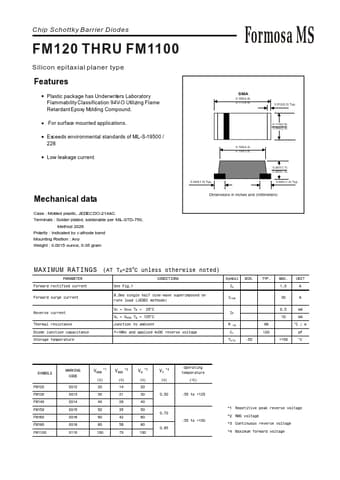

Preview of FM1100 PDF
datasheet Preview Page 2

Datasheet Details

Part number
FM1100
Manufacturer
Formosa MS
File Size
68.88 KB
Datasheet
FM1100_FormosaMS.pdf
Description
Chip Schottky Barrier Diode
