HFM102 - Ultra fast recovery type

Datasheet Summary

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O Utilizing Flame Retardant Epoxy M olding Compound. For surface mounted.

Formosa MS

📥 Download Datasheet

Datasheet Details

Part number	HFM102
Manufacturer	Formosa MS
File Size	69.74 KB
Description	Ultra fast recovery type
Datasheet	HFM102 Datasheet
Additional preview pages of the HFM102 datasheet.

📁 Similar Datasheet

HFM102 - High Efficiency Rectifiers (LRC)
HFM102 - HIGH EFFICIENCY SILICON RECTIFIER (WILLAS)
HFM102 - HIGH EFFICIENCY SILICON RECTIFIER (Rectron)
HFM102-M - ULTRA FAST RECOVER TYPE (PACELEADER)
HFM101 - High Efficiency Rectifiers (LRC)
HFM101 - HIGH EFFICIENCY SILICON RECTIFIER (WILLAS)
HFM101 - HIGH EFFICIENCY SILICON RECTIFIER (Rectron)
HFM101-M - ULTRA FAST RECOVER TYPE (PACELEADER)
HFM103 - High Efficiency Rectifiers (LRC)
HFM103 - HIGH EFFICIENCY SILICON RECTIFIER (WILLAS)

Other Datasheets by Formosa MS

HFM102-M - Ultra fast recovery type
HFM101 - Ultra fast recovery type
HFM101-M - Ultra fast recovery type
HFM103 - Ultra fast recovery type
HFM103-M - Ultra fast recovery type
HFM104 - Ultra fast recovery type
HFM104-M - Ultra fast recovery type
HFM105 - Ultra fast recovery type

Full PDF Text Transcription

Click to expand full text

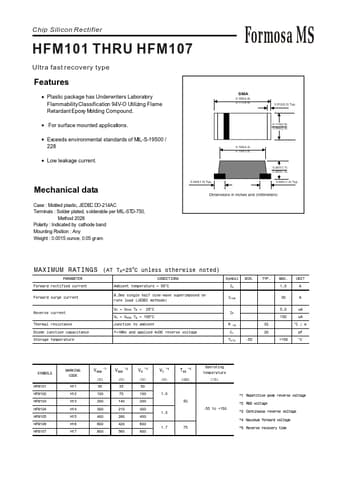

Chip Silicon Rectifier HFM101 THRU HFM107 Ultra fast recovery type Formosa MS SMA 0.185(4.8) 0.177(4.4) 0.012(0.3) Typ. Features Plastic package has Underwriters Laboratory Flammability Classification 94V-O Utilizing Flame Retardant Epoxy M olding Compound. For surface mounted applications. Exceeds environmental standards of MIL-S-19500 / 228 Low leakage current. 0.067(1.7) 0.060(1.5) 0.110(2.8) 0.094(2.4) 0.165(4.2) 0.150(3.8) 0.040(1.0) Typ. 0.040 (1.0) Typ. Mechanical data Case : Molded plastic, JEDE C DO-214AC Terminals : Solder plated, s olderable per MIL-STD-750, Method 2026 Polarity : Indicated by cathode band Mounting P osition : Any Weight : 0.0015 ounce, 0.
