SR820 8.0 AMP SCHOTTKY BARRIER RECTIFIERS

SR820 Description

SR820 8.0 AMP SCHOTTKY BARRIER RECTIFIERS THRU SR860 VOLTAGE RANGE 20 to 60 Volts CURRENT .

SR820 Features

* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction .412 (10.5) MAX. .108 (2.75) 8.0 Amperes 3.8 f +.2 HOLE THRU TO-220A .180 (4.6) .050 (1.27) .248 (6.3) MECHANICAL DATA
* Case: Molded plastic

📥 Download Datasheet

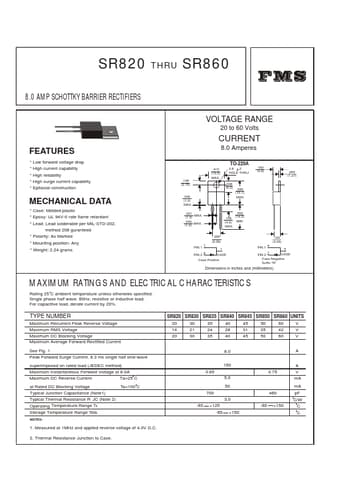

Preview of SR820 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SR820
Manufacturer
Formosa MS
File Size
38.24 KB
Datasheet
SR820_FormosaMS.pdf
Description
8.0 AMP SCHOTTKY BARRIER RECTIFIERS
