FSP150-ACA

150 WATT SWITCHING POWER SUPPLIES

FSP150-ACA Features

* Wide range input 90 to 260VAC Standby consumption < 1W Low safety ground leakage current Low ripple and noise Fast transient response Overcurrent, Short-circuit, Overvoltage, and Thermal protections 100% burn-i

FSP150-ACA General Description

This series of switching power supplies are specially designed for portable applications. They are capable of delivering up to 150 watts of continuous DC output power. Construction is a 94V-1 rated polyphenylene-oxide case with an IEC 320/C14 inlet to mate with interchangeable cord for world-wide us.

FSP150-ACA Datasheet (203.65 KB)

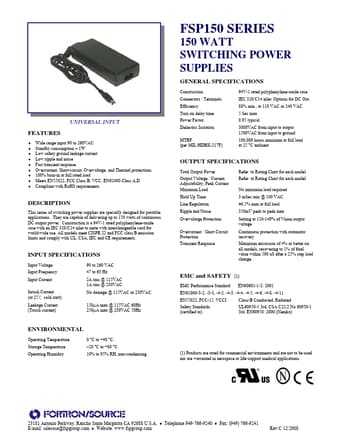

Preview of FSP150-ACA PDF

Datasheet Details

Part number:

FSP150-ACA

Manufacturer:

Fortron

File Size:

203.65 KB

Description:

150 watt switching power supplies.
FSP150 SERIES 150 WATT SWITCHING POWER SUPPLIES GENERAL SPECIFICATIONS Construction Connectors / Terminals Efficiency Turn on delay time Power Factor .
