HL07051 Datasheet - Foxconn

HL07051 (HL07 Series) Shrouded Header

SPECIFICATIONS Shrouded Header HL07 Series Vertical, T/H Type 2.54mm x 2.54mm Grid [.100” x .100”] Mechanical Contact Retention Force: 1.36kg min. Electrical Voltage Rating: 250V Current Rating: 3A Dielectric Withstanding Voltage: 1000V AC Insulation Resistance: 1000MΩ Physical Housing: Thermoplastic, UL 94V-0 rated in Black Color Contact: Copper alloy Plating: See “ORDERING INFORMATION” Operating Temperature: -40℃ to +105℃ DRAWING HL0725 HL0720 25/50 20/40 17/34 15/30 13/26 10/.

HL07051_Foxconn.pdf

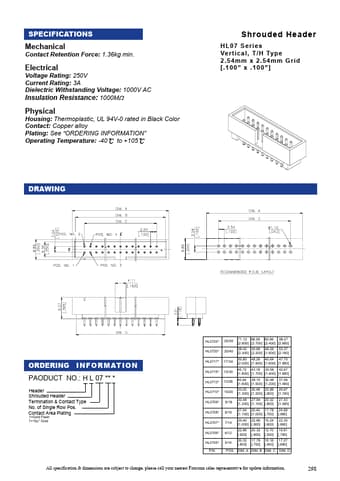

Preview of HL07051 PDF

Datasheet Details

Part number:

HL07051

Manufacturer:

Foxconn

File Size:

174.29 KB

Description:

(hl07 series) shrouded header.
