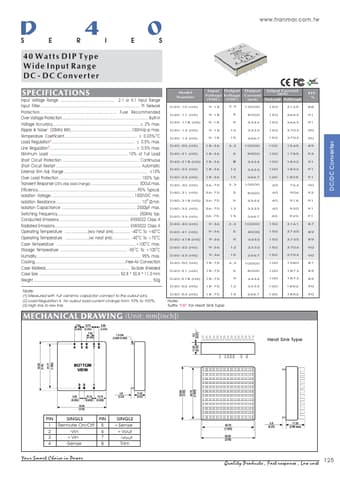

D40-11B - 40 Watts DIP Type Wide Input Range DC-DC Converter
DC/DC Converter D40 40 Watts DIP Type Wide Input Range DC - DC Converter Input Voltage Range 2:1 or 4:1 Input Range Input Filter Pi Network Protection Fuse Recommended Over Voltage Protection Built-in Voltage Accuracy ± 2% max.
Ripple & Noise1 (20MHz BW)100mVp-p max.
Temperature Coefficient ± 0.03%/OC Load Regulation2 ± 0.5% max.
Line Regulation3 ± 0.5% max.
Minimum Load
