D4001BC - CD4001BC

National Semiconductor

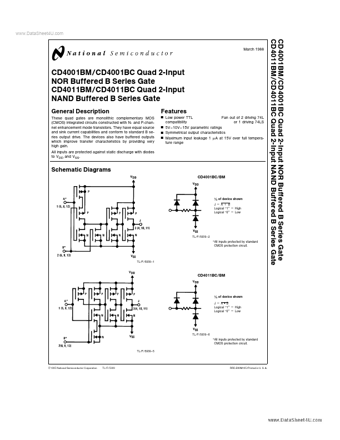

D4001BC Datasheet Preview — Preview of D4001BC PDF

Datasheet Details

Part number	D4001BC
Manufacturer	National Semiconductor ↗
File Size	183.53 KB
Description	CD4001BC
Datasheet	D4001BC_NationalSemiconductor.pdf

D4001BC Product details

Description

These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors They have equal source and sink current capabilities and conform to standard B series output drive The devices also have buffered outputs which improve transfer characteristics by providing very high gain All inputs are protected against static discharge with diodes to VDD and VSS

Features

Y Y Y Y Low power TTL Fan out of 2 driving 74L compatibility or 1 driving 74LS 5V.
10V.
15V parametric ratings Symmetrical output characteristics Maximum input leakage 1 mA at 15V over full temperature range Schematic Diagrams CD4001BC BM of device shown JeAaB Logical ‘‘1’’ e High Logical ‘‘0’’ e Low TL F 5939.
2 All inputs protected by standard CMOS protection circuit TL F 5939.
1 CD4011BC BM of device shown JeAB Logical ‘‘1’’ e High Logical ‘‘0’’ e.
