DW12-13 10~12Watts DIL Type DC-DC Converter

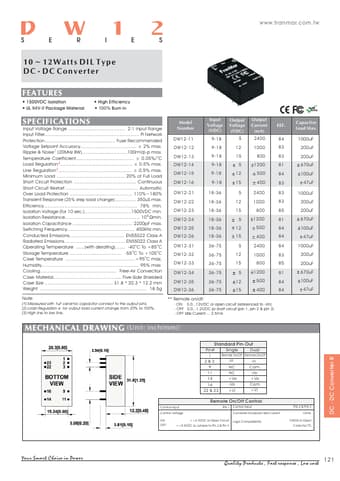

DC/DC Converter DC - DC Converter R DW12 SERIES 10~12Watts DIL Type DC - DC Converter www.franmar.com.tw 1500VDC Isolation UL 94V-0 Package Material High Efficiency 100% Burn in Input Voltage Range 2:1 Input Range Input Filter Pi Network Protection Fuse Recommended Voltage Setpoint Accuracy ± 2% max. Ripple & Noise1 (20MHz BW)100mVp-p max. Temperature Coefficient ± 0.05%/OC Load Regulation2 ± 0.5% max. Line Regulation3 ± 0.5% max. Minimum Load 20% of Full Load Shor.

DW12-11-FranMar.pdf

DW12-13 Datasheet Preview — This datasheet PDF includes multiple part numbers: DW12-13, DW12-11. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DW12-13, DW12-11

Manufacturer:

FranMar

File Size:

90.88 KB

Description:

10~12watts dil type dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: DW12-13, DW12-11.
Please refer to the document for exact specifications by model.
