DW10-24D15 DC-DC Converter

Pin Definition PIN Single Dual 1 +Vin +Vin 2 GND GND 3 +Vo +Vo 4 NC 0V 5 0V -Vo Left Side View Bottom View SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. 3F, 3Bldg, Duoli Industrial Zone, Meihua Rd. Futian District, Shenzhen 518049, China Tel: +86-755-83100080 Fax: +86-755-83116652 Email: inf.

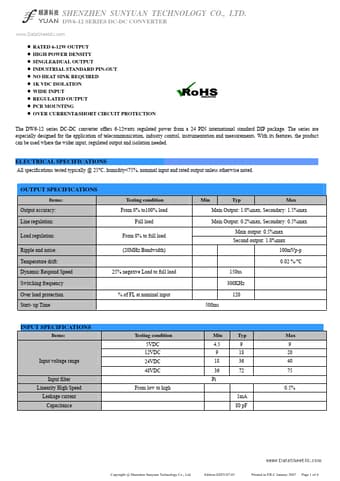

SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. DW6-12 SERIES DC-DC CONVERTER www.DataSheet4U.com RATED 6-12W OUTPUT HIGH POWER DENSITY SINGLE&DUAL OUTPUT INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1K VDC ISOLATION WIDE INPUT REGULATED OUTPUT PCB MOUNTING OVER CURRENT&SHORT CIRCUIT PROTECTION The DW6-12 series DC-DC converter offers 6-12watts regulated power from a 24 PIN international standard DIP package. The series are especially designed for the application of telecommunication, industry contro.

DW10-24D15 Features

* the product can be used where the wider input, regulated output and isolation needed. ELECTRICAL SPECIFICATIONS All specifications tested typically @ 25°C, humidity
