E05-11, E05-10 Datasheet - FranMar

E05-11 5 Watts DIP Type Wide Input DC-DC Converters

DC/DC Converter E05 5 Watts DIP Type Wide Input DC - DC Converters 5-6W Isolated Output / 24-Pin DIP Package / 2:1 Input Range Regulated Outputs Continuous Short Circuit Protection / High Efficiency Up To 82% (Optional) Conductive EMI Meet EN55022 Class B Input Filter PI Type Voltage Accuracy± 2%max. Voltage Balance(Dual)± 1% max. Temperature Coefficient± 0.05%/℃ Ripple&Noise (20MHz BW)(5V)100mVp-p max. (12/ 15V)1%Vp-p max. Short Circuit Protection Continuous Line Regu.

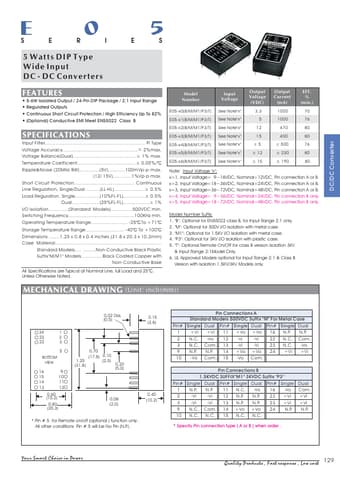

E05-10-FranMar.pdf

This datasheet PDF includes multiple part numbers: E05-11, E05-10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

E05-11, E05-10

Manufacturer:

FranMar

File Size:

79.21 KB

Description:

5 watts dip type wide input dc-dc converters.

Note:

This datasheet PDF includes multiple part numbers: E05-11, E05-10.
Please refer to the document for exact specifications by model.
