FLD12-060

Constant Current LED Driver

FLD12-060 Features

* EFFICIENCY UP TO 90%

* CONSTANT CURRENT LED DRIVER

* WIDE INPUT AND OUTPUT VOLTAGE RANGE

* INPUT VOLTAGE UP TO 36V

* PWM DIMMING CONTROL

* SHORT CIRCUIT AND OVERTEMPERATURE PROTECTED

* INTERNAL SMD TECHNOLOGY

* FULLY ISOLATED PLAST2C CASE WITH IP67 LEVEL

* UL 94

FLD12-060 General Description

FLD12 series is a high efficiency, constant current and Buck-Boost DC/DC converter. The LED DRIVER operates from an input voltage 9Vdc to 36Vdc and provides an externally adjustable output current of up to 600mA and output power up to 16 watts. It is able to include the function of Over temperature .

FLD12-060 Datasheet (330.07 KB)

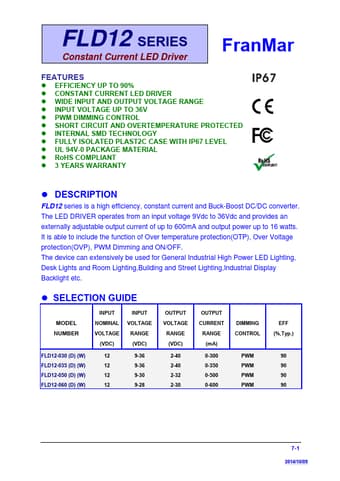

Preview of FLD12-060 PDF

Datasheet Details

Part number:

FLD12-060

Manufacturer:

FranMar

File Size:

330.07 KB

Description:

Constant current led driver.
