FLD24-100

Constant Current LED Driver

FLD24-100 Features

* EFFICIENCY UP TO 96%

* CONSTANT CURRENT LED DRIVER

* WIDE INPUT AND OUTPUT VOLTAGE RANGE

* INPUT VOLTAGE UP TO 36V

* PWM/DC DIMMING CONTROL

* SHORT CIRCUIT PROTECTED

* INTERNAL SMD TECHNOLOGY

* FULLY ISOLATED PLAST2C CASE WITH IP67 LEVEL

* UL 94V-0 PACKAGE MATER

FLD24-100 General Description

FLD24 series is a high efficiency, constant current and step-down DC/DC converter. The LED DRIVER operates from an input voltage 6Vdc to 36Vdc and provides an externally adjustable output current of up to 1500mA and output power up to 45 watts. It is able to include the function of Over current prot.

FLD24-100 Datasheet (377.93 KB)

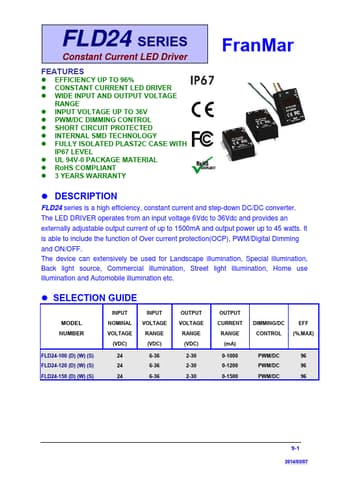

Preview of FLD24-100 PDF

Datasheet Details

Part number:

FLD24-100

Manufacturer:

FranMar

File Size:

377.93 KB

Description:

Constant current led driver.
