33385 Datasheet - Freescale Semiconductor

33385 Quad Low-side Driver

www.DataSheet4U.com Freescale Semiconductor Technical Data Document Number: MC33385 Rev. 6.0, 11/2006 Quad Low-side Driver The MC33385 is a Quad Low-side Driver fully protected switch. This device is a general purpose Low-side Driver but has been especially designed to operate in engine management applications as injector driver or automotive gear box. It is interfaced directly with a microcontroller for parallel control of the load and the individual output diagnostic is done through a SPI. .

33385 Features

* RDSON of 250mΩ per Output at 25°C

* Supplied from the main 5V VCC

* Input CMOS Compatible

* Diagnostic through SPI

* Nominal Current of 2A per Output

* Current Limitation at 3A with Automatic Turn Off

* Output Internally Clamped at 50V typ fo

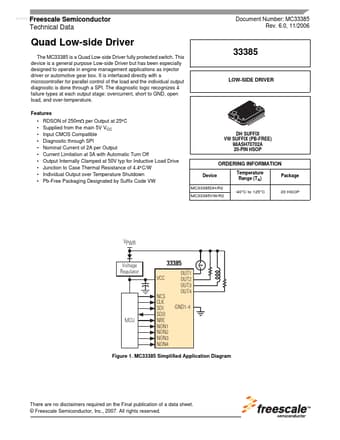

33385 Datasheet (322.49 KB)

33385 Datasheet Preview — Preview of 33385 PDF

Datasheet Details

Part number:

33385

Manufacturer:

Freescale Semiconductor

File Size:

322.49 KB

Description:

Quad low-side driver.
