AN3100 General Purpose Amplifier Biasing

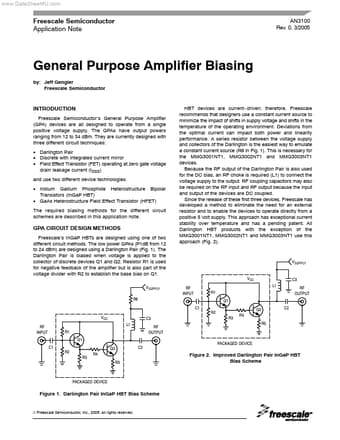

www.DataSheet4U.com Freescale Semiconductor Application Note AN3100 Rev. 0, 3/2005 General Purpose Amplifier Biasing by: Jeff Gengler Freescale Semiconductor INTRODUCTION Freescale Semiconductor’s General Purpose Amplifier (GPA) devices are all designed to operate from a single positive voltage supply. The GPAs have output powers ranging from 12 to 34 dBm. They are currently designed with three different circuit techniques: Darlington Pair Discrete with integrated current.
