AN3117SA - RF modulator IC for VCR and VDP

Product Overview

Panasonic Semiconductor

Part number	AN3117SA
Manufacturer	Panasonic Semiconductor
File Size	71.47 KB
Description	RF modulator IC for VCR and VDP
Datasheet	AN3117SA Datasheet

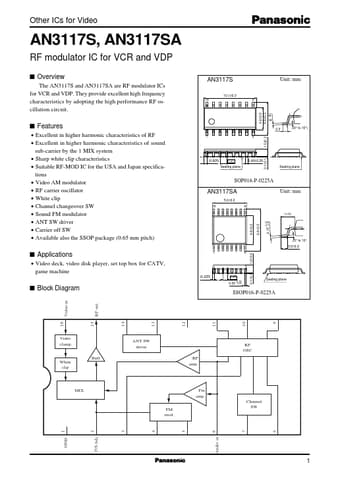

Additional preview pages of the AN3117SA datasheet.

Pin No.

Excellent in higher harmonic characteristics of RF.
Excellent in higher harmonic characteristics of sound sub-carrier by the 1 MIX system.
Sharp white clip characteristics.
Suitable RF-MOD IC for the USA and Japan specifications.
Video AM modulator.
RF carrier oscillator.
White clip.
Channel changeover SW.
Sound FM modulator.
ANT SW driver.
Carrier off SW.
Available also the SSOP package.
