FXTH870912DT1, FXTH870502DT1 - Tire Pressure Monitor Sensor

Freescale Semiconductor

Datasheet Details

Part number	FXTH870912DT1, FXTH870502DT1
Manufacturer	Freescale Semiconductor
File Size	1.84 MB
Description	Tire Pressure Monitor Sensor

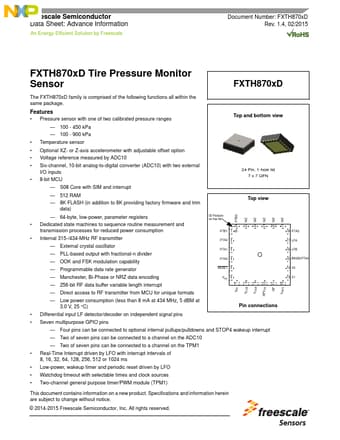

Datasheet	FXTH870502DT1-FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FXTH870912DT1, FXTH870502DT1. Please refer to the document for exact specifications by model.

Pressure sensor with one of two calibrated pressure ranges.
100 - 450 kPa.
100 - 900 kPa.
Temperature sensor.
Optional XZ- or Z-axis accelerometer with adjustable offset option.
Voltage reference measured by ADC10.
Six-channel, 10-bit analog-to-digital converter (ADC10) with two external I/O inputs.
8-bit MCU.
S08 Core with SIM and interrupt.
512 RAM.
8K FLASH (in addition to 8K providing factory.
