MC13770

Single Band LNA and Mixer FEIC

MC13770 Features

* RF Input Frequency: 2100 to 2400 MHz LNA Gain = 15 dB (Typ) LNA Input 3rd Order Intercept Point (IIP3) = 0 dBm (Typ) LNA Noise Figure (NF) = 1.5 dB (Typ) Bypass Mode Included for Improved Intercept Point Performance Double Balanced Mixer Mixer Conversion Gain = 10 dB (Typ) Mixer Noise Figure (NF) =

MC13770 General Description

. . . . . . . . . . . . . . . . . . . . Applications Information . . . . . . . . . . . . . . . . Packaging Information. . . . . . . . . . . . . . . . . . 1 2 4 4 7 The MC13770 is a single band front-end IC designed for wireless receiver applications. It contains a low noise LNA and a high linearity.

MC13770 Datasheet (414.10 KB)

Preview of MC13770 PDF

Datasheet Details

Part number:

MC13770

Manufacturer:

Freescale Semiconductor

File Size:

414.10 KB

Description:

Single band lna and mixer feic.

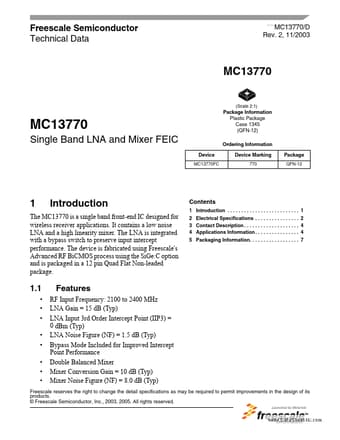

Freescale Semiconductor Technical Data MC13770/D Rev. 2, 11/2003 www.DataSheet4U.com MC13770 (Scale 2:1) MC13770 Single Band LNA and Mixer FEIC De.
