MC34652 Negative Voltage Hot Swap Controller

of each pin can be found in the FUNCTIONAL PIN DESCRIPTION section beginning on page 10. Pin 1, 8, 9, 16 2 3 4, 5 6 7 10 11 12 13 Pin Name VIN PG PG VOUT TIMER NC OV UV VPWR DISABLE Formal Name Negative Supply Input Voltage Power Good Output (Active High) Power Good Output (Active Low) Output Voltag.

www.DataSheet4U.com Freescale Semiconductor Advance Information Document Number: MC34652 Rev. 8.0, 2/2007 2.0 A Negative Voltage Hot Swap Controller with Enhanced Programmability The 34652 is a highly integrated - 48 V hot swap controller with an internal Power MOSFET. It provides the means to safely install and remove boards from live - 48 V backplanes without having to power down the entire system. It regulates the inrush current, from the supply to the load’s filter capacitor, to a user-pr.

MC34652 Features

* Integrated Power MOSFET and Control IC in a Small Outline Package

* Input Voltage Operation Range from -15 V to - 80 V

* Programmable Overcurrent Limit with Auto Retry

* Programmable Charging Current Limit Independent of Load Capacitor

* Programmable Start-U

MC34652 Datasheet (1.36 MB)

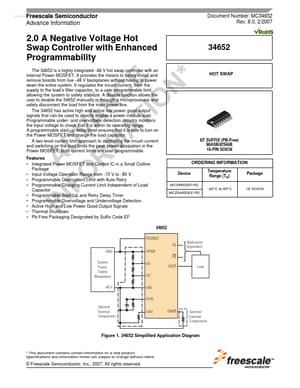

MC34652 Datasheet Preview — Preview of MC34652 PDF

Datasheet Details

Part number:

MC34652

Manufacturer:

Freescale Semiconductor

File Size:

1.36 MB

Description:

Negative voltage hot swap controller.
