MC34670 IEEE 802.3af PD

📥 Download Datasheet  Datasheet Preview Page 1

Description

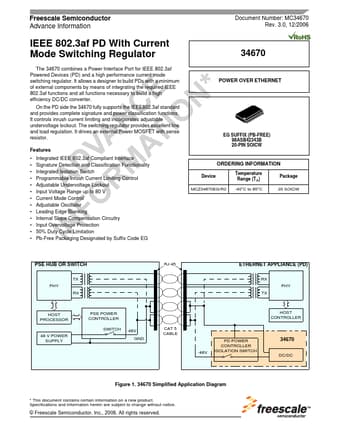

www.DataSheet4U.com Freescale Semiconductor Advance Information Document Number: MC34670 Rev.3.0, 12/2006 IEEE 802.3af PD With Current Mode Switch.

📥 Download Datasheet

Preview of MC34670 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MC34670
Manufacturer
Freescale Semiconductor
File Size
623.65 KB
Datasheet
MC34670_FreescaleSemiconductor.pdf
Description
IEEE 802.3af PD

Features

* Integrated IEEE 802.3af Compliant Interface Signature Detection and Classification Functionality Integrated Isolation Switch Programmable Inrush Current Limiting Control

Applications

* it’s connected to the secondary output through a resistor divider. The current sense pin CS senses a voltage that is proportional to the current through the sense resistor. GATE drives the gate of the external power MOSFET. GATE sources and sinks up to 1.0 A. VDD mainly supplies the gate of the exte
