MC56F8166 Datasheet - Freescale Semiconductor

MC56F8166 16-bit Digital Signal Controllers

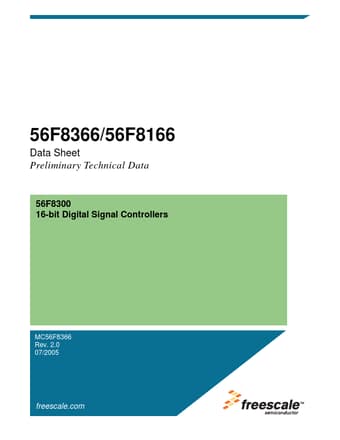

56F8366/56F8166 Data Sheet Preliminary Technical Data 56F8300 16-bit Digital Signal Controllers MC56F8366 Rev. 2.0 07/2005 freescale.com Document Revision History Version History Rev 0 Rev 1.0 Rev. 2.0 Pre-release, Alpha customers only Initial Public Release Added output voltage maximum value and note to clarify in Table 10-1; also removed overall life expectancy note, since life expectancy is dependent on customer usage and must be determined by reliability engineering. Clarified value and .

MC56F8166 Features

* in italics are NOT available in the 56F8166 device.

* Up to 60 MIPS at 60MHz core frequency

* DSP and MCU functionality in a unified, C-efficient architecture

* Access up to 1MB of off-chip program and data memory

* Chip Select Logic for glueless interface to ROM and

MC56F8166 Datasheet (2.24 MB)

MC56F8166 Datasheet Preview — Preview of MC56F8166 PDF

Datasheet Details

Part number:

MC56F8166

Manufacturer:

Freescale Semiconductor

File Size:

2.24 MB

Description:

16-bit digital signal controllers.
