MCZ33290 ISO K Line Serial Link Interface

www.DataSheet4U.com Freescale Semiconductor Technical Data Document Number: MC33290 Rev. 7.0, 10/2006 ISO K Line Serial Link Interface The 33290 is a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications. It is designed to interface between the vehicle’s on-board microcontroller and systems off-board the vehicle via the special ISO K line. The 33290 is designed to meet the Diagnostic Systems ISO9141 spec.

MCZ33290 Features

* Operates Over Wide Supply Voltage of 8.0 to 18 V

* Operating Temperature of -40 to 125°C

* Interfaces Directly to Standard CMOS Microprocessors

* ISO K Line Pin Protected Against Shorts to Ground ORDERING INFORMATION Device MC33290D/R2 MCZ33290EF/R2 Temperature R

MCZ33290 Datasheet (198.22 KB)

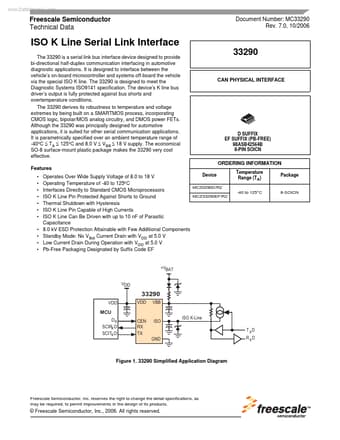

Preview of MCZ33290 PDF
