MPC17517 Datasheet, Driver, Freescale Semiconductor

MPC17517 Features

  • Driver
  • 2.0 V to 6.8 V Continuous Operation
  • Output Current 1.0 A (DC), 3.0 A (Peak)
  • MOSFETs < 600 mΩ RDS(ON) @ 25°C Guaranteed
  • 3.0 V/5.0 V TTL-/CMOS-Comp

PDF File Details

Part number:

MPC17517

Manufacturer:

Freescale Semiconductor

File Size:

489.81kb

Download:

📄 Datasheet

Description:

1.0 a 6.8 v dual motor driver. Terminal Terminal Name VDD VM OUTA CRES C2H C2L IN1 IN2 EN1 EN2 C1L C1H OUTB GND OUTC Formal Name Control Circuit Power Supply Motor

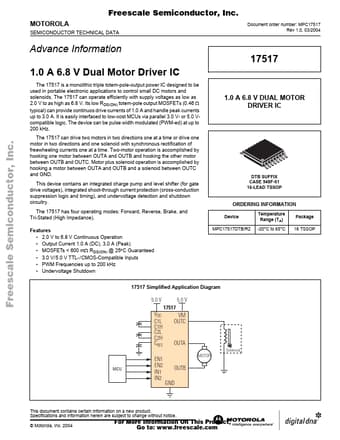

Datasheet Preview: MPC17517 📥 Download PDF (489.81kb)
Page 2 of MPC17517 Page 3 of MPC17517

MPC17517 Application

  • Applications to control small DC motors and solenoids. The 17517 can operate efficiently with supply voltages as low as 2.0 V to as high as 6.8 V. I
