MPC17510 Datasheet, Driver, NXP

MPC17510 Features

  • Driver
  • 2.0 V to 15 V continuous operation
  • Output current 1.2 A (DC), 3.8 A (peak)
  • 450 mΩ RDS(on) H-Bridge MOSFETs
  • 5.0 V TTL-/CMOS-compatible inputs

PDF File Details

Part number:

MPC17510

Manufacturer:

NXP ↗

File Size:

837.89kb

Download:

📄 Datasheet

Description:

1.2a 15v h-bridge motor driver. of each pin can be found in the Functional Pin Description section beginning on page 9. Table 2. 17510 pin definitions Pin number P

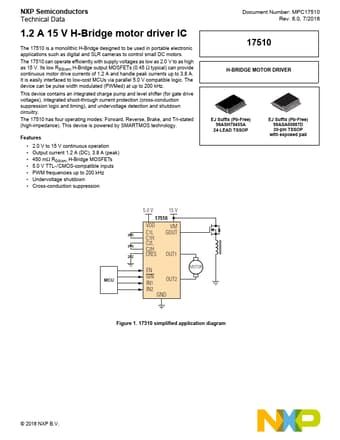

Datasheet Preview: MPC17510 📥 Download PDF (837.89kb)
Page 2 of MPC17510 Page 3 of MPC17510

MPC17510 Application

  • Applications such as digital and SLR cameras to control small DC motors. The 17510 can operate efficiently with supply voltages as low as 2.0 V to a
