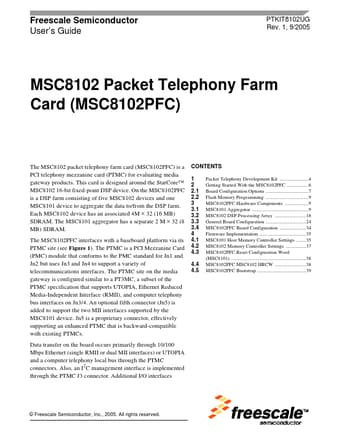

Freescale Semiconductor User’s Guide PTKIT8102UG Rev.

1, 9/2005 MSC8102 Packet Telephony Farm Card (MSC8102PFC) The MSC8102 packet telephony farm card (MSC8102PFC) is a PCI telephony mezzanine card (PTMC) for evaluating media gateway products.

This card is designed around the StarCore™ MSC8102 16-bit fixed-point DSP device.

On the MSC8102PFC is a DSP farm consisting of five MSC8102 devices and one MSC8101 device to aggregate the data to/from the DSP farm.

Each MSC8102 device has an associated

MSC8102 Features

* of the MSC8102PFC are as follows (see Figure 2):

* MSC8102PFC platform:

* Digital support for up to 672 channels

* PTMC Type 3 form card for interfacing to standard subsystems

* MSC8101 aggregator

* MSC8101 DSP communications processor with:

* 10/100Ba
