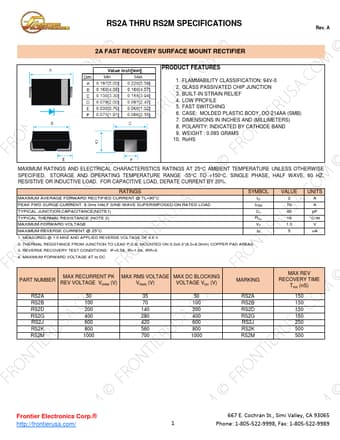

RS2J Features
* 1. FLAMMABILITY CLASSIFICATION: 94V-0 2. GLASS PASSIVATED CHIP JUNCTION 3. BUILT-IN STRAIN RELIEF 4. LOW PROFILE 5. FAST SWITCHING 6. CASE: MOLDED PLASTIC BODY, DO-214AA (SMB) 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. POLARITY: INDICATED BY CATHODE BAND 9. WEIGHT : 0.093 GRAMS 10. RoHS MAXIMUM R
Datasheet Details
RS2J, RS2A
Frontier Electronics
850.06 KB
2a fast recovery surface mount rectifier.
This datasheet PDF includes multiple part numbers: RS2J, RS2A.
Please refer to the document for exact specifications by model.
