SR310 - 3A SCHOTTKY BARRIER RECTIFIERS

This page provides the datasheet information for the SR310, a member of the SR302 3A SCHOTTKY BARRIER RECTIFIERS family.

Datasheet Summary

Features

  • !.

📥 Download Datasheet

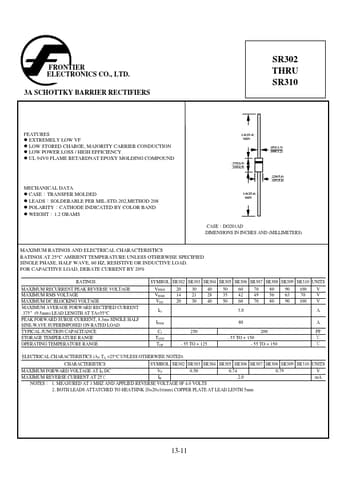

Datasheet preview – SR310

Datasheet Details

Part number SR310
Manufacturer Frontier Electronics
File Size 61.85 KB
Description 3A SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet SR310 Datasheet
Additional preview pages of the SR310 datasheet.

📁 Similar Datasheet

  • SR310 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Power Silidon)
  • SR310 - MINIATURE SCHOTTKY BARRIER RECTIFIER (CHENG-YI)
  • SR310 - 3.0 Amp. Schottky Barrier Rectifiers (JGD)
  • SR310 - SCHOTTKY BARRIER RECTIFIERS (Mospec Semiconductor)
  • SR310 - 3.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • SR310 - 3A Leaded Type Schottky Barrier Rectifiers (CITC)
  • SR310 - SCHOTTKY BARRIER RECTIFIER (MIC)
  • SR310 - 3.0 AMPS. Schottky Barrier Rectifiers (Taiwan Semiconductor)
  • SR3100 - SCHOTTKY BARRIER RECTIFIER (JINAN JINGHENG)
  • SR3100 - SCHOTTKY BARRIER RECTIFIER (Kingtronics)
Other Datasheets by Frontier Electronics
  • SR302 - 3A SCHOTTKY BARRIER RECTIFIERS
  • SR303 - 3A SCHOTTKY BARRIER RECTIFIERS
  • SR304 - 3A SCHOTTKY BARRIER RECTIFIERS
  • SR305 - 3A SCHOTTKY BARRIER RECTIFIERS
  • SR306 - 3A SCHOTTKY BARRIER RECTIFIERS
  • SR307 - 3A SCHOTTKY BARRIER RECTIFIERS
  • SR308 - 3A SCHOTTKY BARRIER RECTIFIERS
  • SR309 - 3A SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text
FRONTIER ELECTRONICS CO., LTD. 3A SCHOTTKY BARRIER RECTIFIERS SR302 THRU SR310 FEATURES ! EXTREMELY LOW VF ! LOW STORED CHARGE, MAJORITY CARRIER CONDUCTION ! LOW POWER LOSS / HIGH EFFICIENCY ! UL 94V0 FLAME RETARDNAT EPOXY MOLDING COMPOUND MECHANICAL DATA ! CASE：TRANSFER MOLDED ! LEADS：SOLDERABLE PER MIL-STD-202,METHOD 208 ! POLARITY：CATHODE INDICATED BY COLOR BAND ! WEIGHT：1.2 GRAMS 1.0(25.4) MIN .375(9.5) .335(8.5) 1.0(25.4) MIN .052(1.3) .048(1.2) .220(5.6) .197(5.0) CASE：DO201AD DIMENSIONS IN INCHES AND (MILLIMETERS) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD.
