6MBI200XBA120-50 IGBT

Fuji Electric

Description

6MBI200XBA120-50 Power Module (X series) 1200V / 200A / 6-in-1 package * .

📥 Download Datasheet

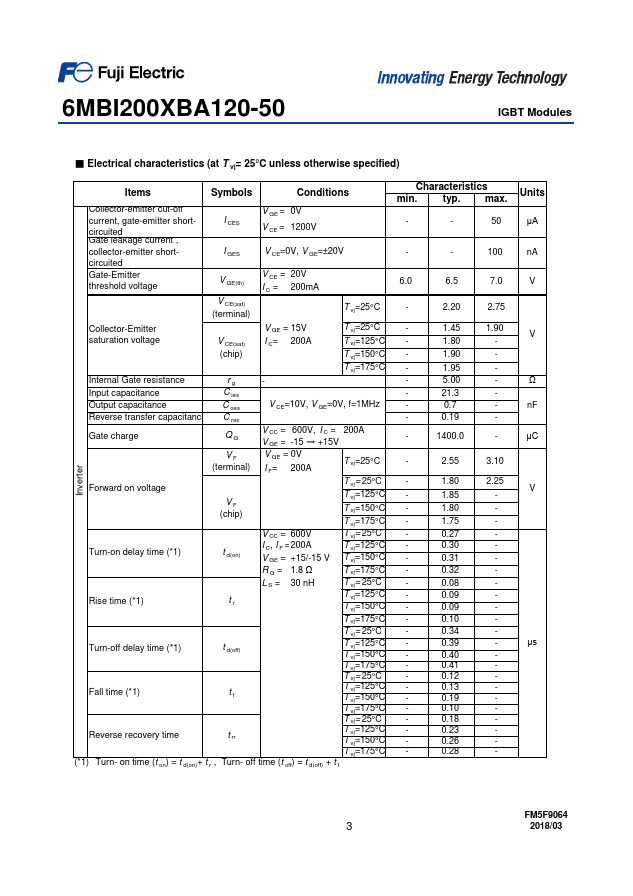

6MBI200XBA120-50 Datasheet Preview — Preview of 6MBI200XBA120-50 PDF

Datasheet Specifications

Part number: 6MBI200XBA120-50
Manufacturer: Fuji Electric
File Size: 536.29 KB
Datasheet: 6MBI200XBA120-50-FujiElectric.pdf
Description: IGBT

Features

* Low V CE(sat) Compact Package P. C. Board Mount Module Converter Diode Bridge Dynamic Brake Circuit RoHS compliant Product

Applications

* Inverter for Motor Drives, AC and DC Servo Drive Amplifier Uniterruptible Power Supply
* Outline drawing ( Unit : mm ) IGBT Modules
* Equivalent Circuit Indication on module Weight: 310 g(typ. ) FM5F9064 1 2018/03 6MBI200XBA120-50 IGBT Modules
* Absolute Maximum Ratings (at T C=
